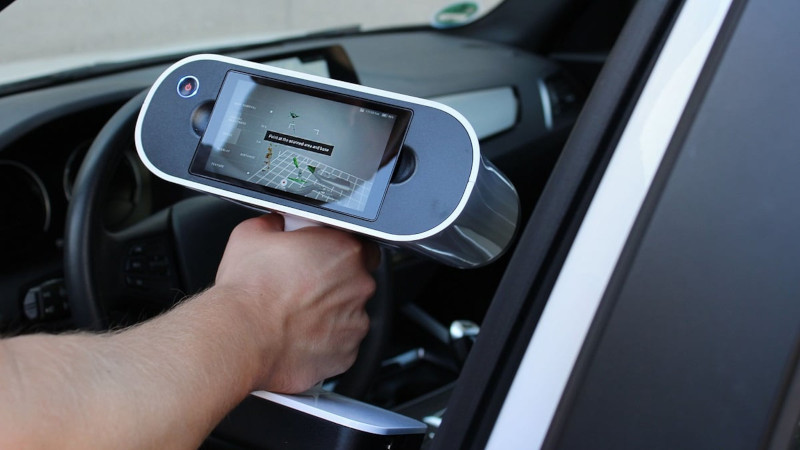

Artec Leo

Portable Wireless 3D Scanner


Artec Leo

Satu-satunya 3D Scanner yang Wireless dan terintegrasi Operating system, layar sentuh dan baterai di dalamnya. Dapat Bekerja secara independen tanpa komputer, membuat pekerjaan 3D Scanning menjadi lebih mudah dan optimal.

3D point accuracyUp to 0.1 mm
3D accuracy over distanceup to 0.1 mm + 0.3 mm/m
Working distance0.35 – 1.2 m
Linear field of view244 × 142 mm – 838 × 488 mm
Texture resolution2.3 mp
Data acquisition speedup to 35’000’000 points/s
Light SourceVCSEL (Vertical-cavity surface-emitting laser) & white 12 LED array
Display/touchscreenintegrated 5.5″ half HD, CTP, optional Wi-Fi/Ethernet video streaming to external device
PhotogrammetryBuilt-in scale bar photogrammetry mode
Embedded processorsNVIDIA® Jetson™ TX2 Quad-core ARM® Cortex®-A57 MPCore Processor NVIDIA Maxwell™ 1 TFLOPS GPU with 256 NVIDIA® CUDA® Cores, Multi-core processing
Interface Wi-Fi, Ethernet, SD cardWi-Fi, Ethernet, SD card
Internal hard drive512 GB SSD
Output Format
  • 3D mesh: OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB
  • Measurements: CSV, DXF, XML
  • Main Features
  • Fully mobile
  • On board real time processing
  • 2 Years Warranty
    • Easy To Use: Interactive real-time scanning hints, hybrid target-free tracking system, smart scanning modes for faster data processing
    • Fully Mobile: An all-new, cloud-connected, WiFi-enabled, and completely cable-free design lets you take Artec Leo’s immense scanning capabilities wherever you need them without ever needing a computer.
    • Powerful scanning. Unprecedented performance: Powered by the most power-efficient embedded NVIDIA Jetson TX2 processor and state-of-the-art algorithms, Leo is like no other scanner when it comes to performance, accuracy, and durability.
    • Color capture capabilities: We’ve packed Leo with advanced tech to capture rich texture, adjust to lighting conditions, and perform precise texture-to-geometry mapping. Leo has a two-in-one optical system, an integrated supercomputer on a module, position sensors with 9 DoF, and VCSEL light technology that varies flash intensity.
    • Versatile solutions: With a 160,000 cm-cubed capture zone, Leo is truly versatile when it comes to size. It excels at capturing both medium-sized (20-50 cm) and large (50-200 cm) objects and surfaces.

    Sample Result
